The range of Hawke American series cable glands provide a seal around the individual cores of a cable to maintain the flameproof integrity of Exd equipment.
The following models are available (click on Hawke type number for specific datasheet):
Hawke type Description
701 Cable gland for use with continuous corrugated metal clad (EX)

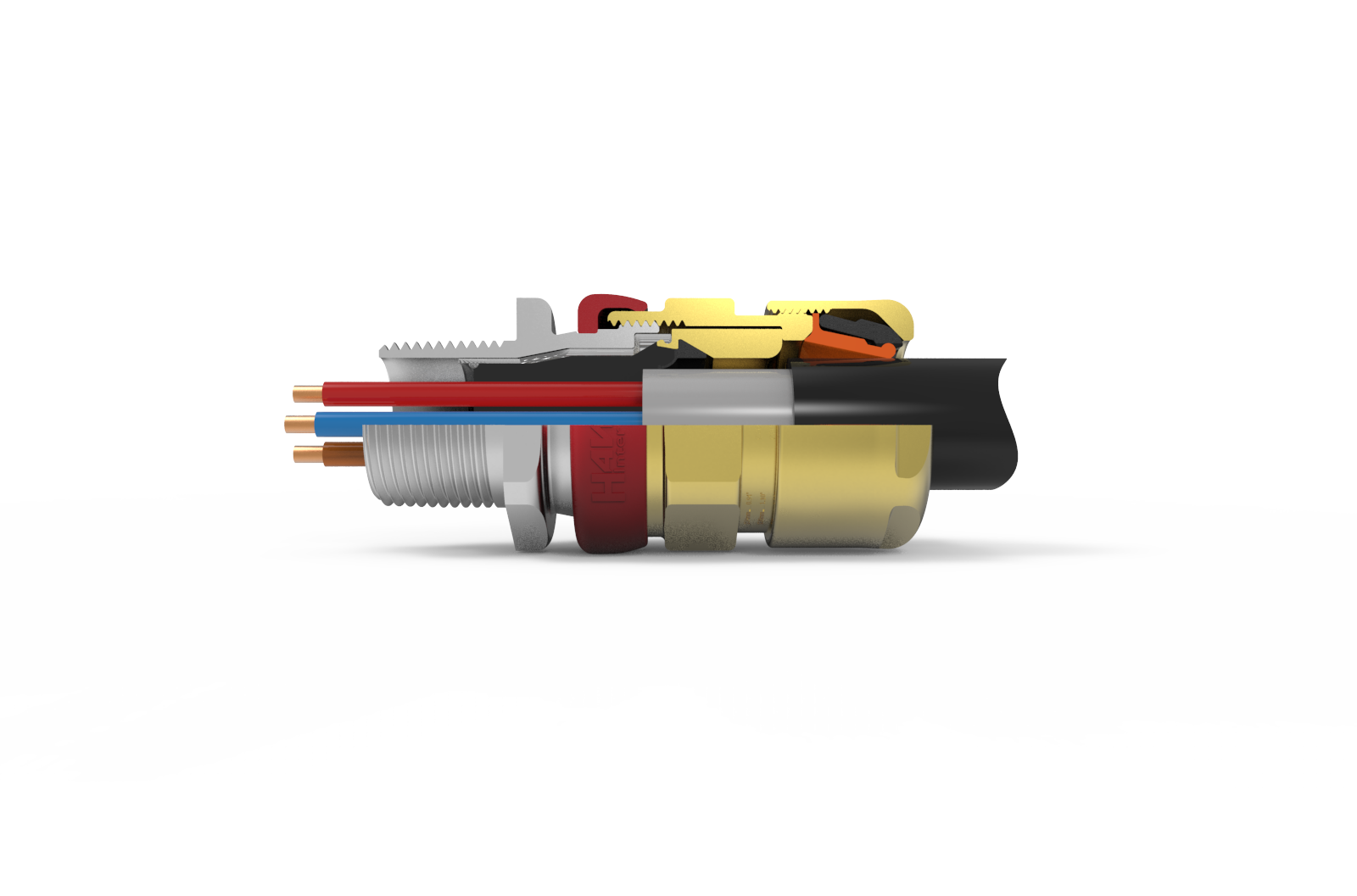

710 Cable gland for unarmoured cables (EX)

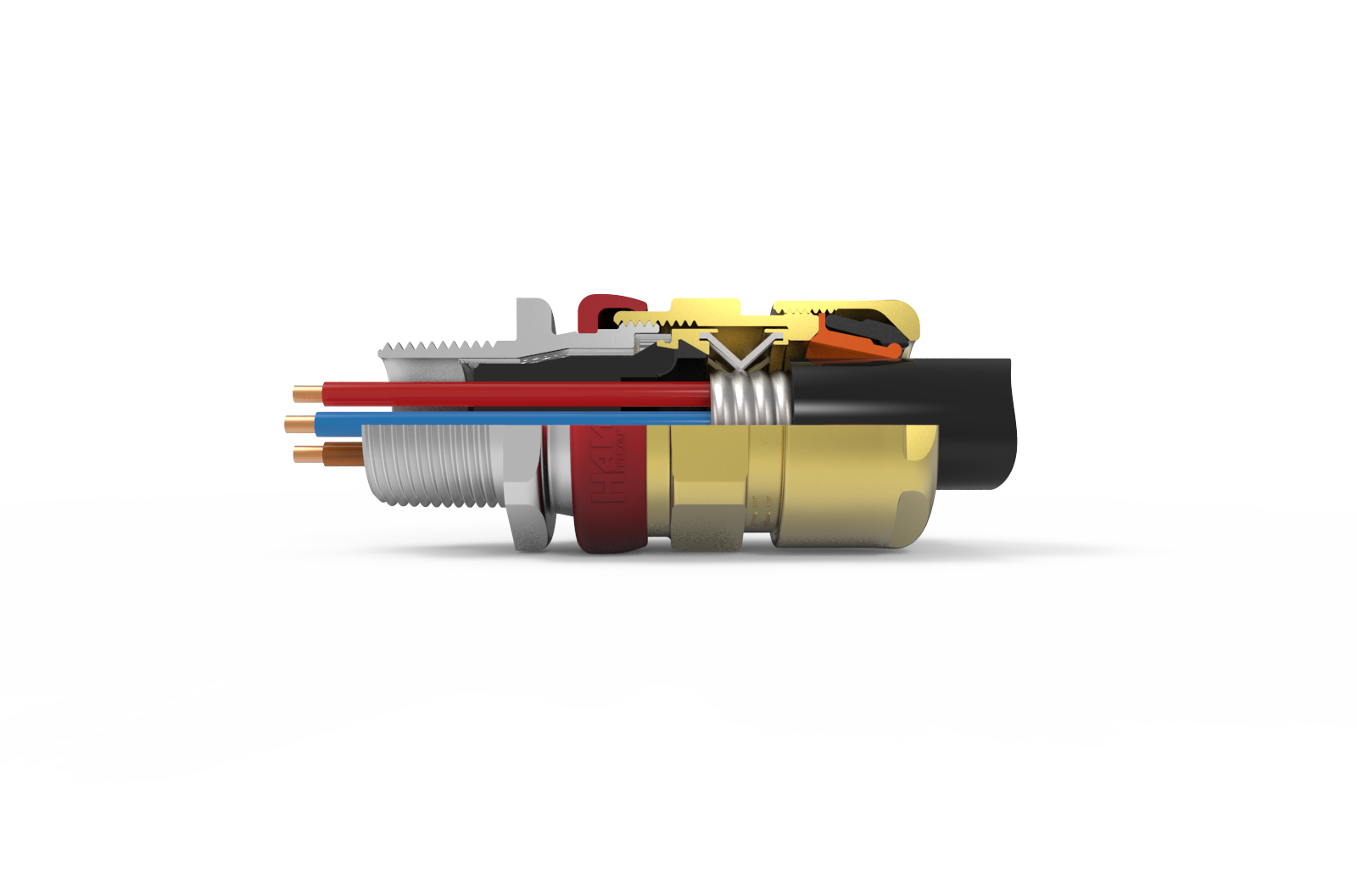

711 Cable gland for use wih continuous corrugated metal clad (EX)
753 Cable gland for armoured cables (EX)
153/X Cable gland for armoured cables (non EX)
Notes :
1) Barrier glands provided with transparent (inspectable) compound pot
2) Tightening guide provided on most models
3) Standard thread is NPT (metric optional) - entry part is nickel plated
| Application ATEX / IECEx | zone 1, 2 and zone 21 and 22 |
| Application c UL us | class I, div 2, Gr A,B,C & D, class II, div 2, Gr F & G, class III |
| Type of protection IECEx | Exdb IIC Gb / Exeb IIC Gb / Extb IIIC Db / Ex II 2 GD |
| Ingress prot | IP66, IP67, IP68 (30m / 7days), IP69, NEMA4X |
| Material | Brass, brass nickel plated or stainless steel 316 |
| Suitable for cables | see individual datasheets (click on Hawke type nr) |
| Operating temp | -50°C to +80°C |
| Certified acc to | CSA / UL / ATEX / IECEx / EAC / Inmetro / PESO / DNV / ABS |
