To avoid moisture or damp inside your boxes and devices, we offer ventilated connections with the outside atmosphere using breather / drains.
Available models (click on type number for specific datasheet) :
Hawke type Description

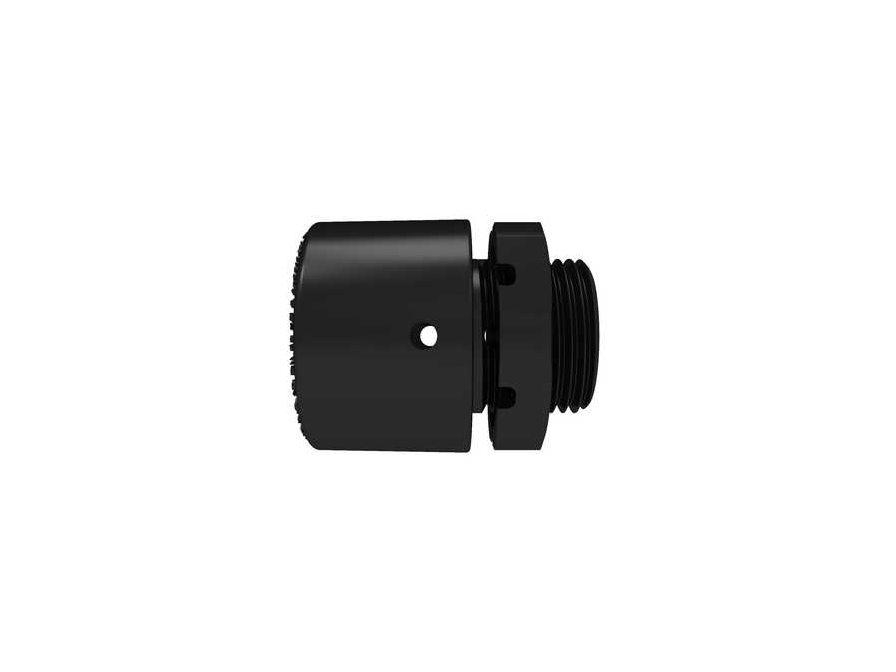

385 Nylon Exe
389 Brass, NP or stainless steel Exe

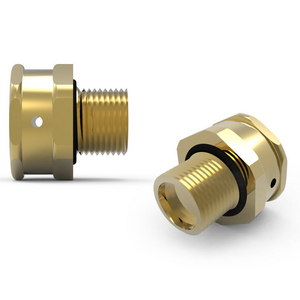

489 Brass, NP or stainless steel Exd
| Application | zone 1, 2 and zone 21 and 22 |
| Type of protection | Exe I Mb / Exe IIC Gb / Extb IIIC Db / IM2 / II 2GD |
| Operating temp | -60°C to +80°C (upto 160°C with silicone gasket) |
| Material | Nylon, brass, brass nickel plated (NP) or stainless steel 316 |
| Ingress prot | IP66 |
| Certified acc to | ATEX / CSA / IECEx / EAC / Inmetro |
| Hawke type nrs | see above |
