Elbows solves your trouble when fitting a cable gland in unwanted position or angles. See here all options in size, shape and materials. Thread conversions can be made. Fixed, swivels, with lockstop, male or female thread. Available in brass, brass nickel plated and stainless steel.
Available models (click on type number for specific datasheet):
Hawke type Description
492 90 degree swivel adapter with lockstop

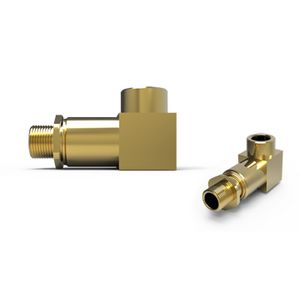

493 90 degree swivel adapter

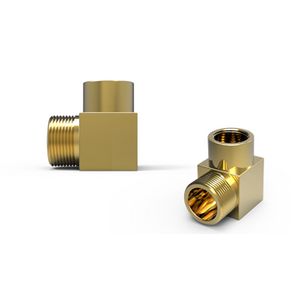

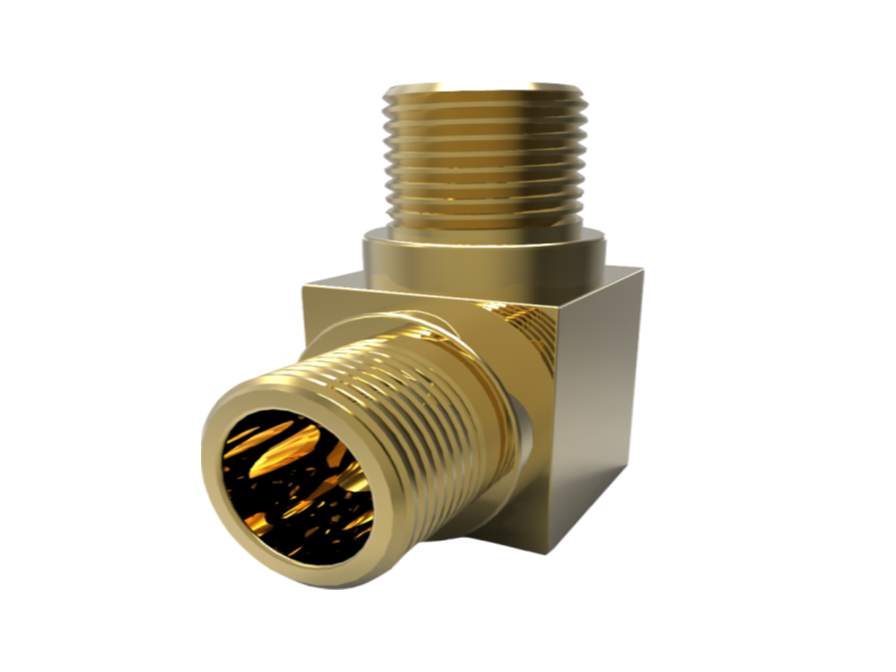

494 90 degree fixed adapter (Male to Female)
495 90 degree fixed adapter (Male to Male)
496 90 degree fixed adapter (Male to Male)
| Application | zone 1, 2 and zone 21 and 22 |
| Type of protection | Exd IIC Gb / Exe IIC Gb / Extb IIIC Db / Ex II 2GD |
| Available threads | Metric / BSPP / PG / ET / NPSM / NPT |
| Ingress prot | IP66 |
| Material | Brass, brass nickel plated or stainless steel 316 |
| Operating temp | -60°C to +80°C |
| Certified acc to | ATEX / CSA / IECEx / EAC / Inmetro |
