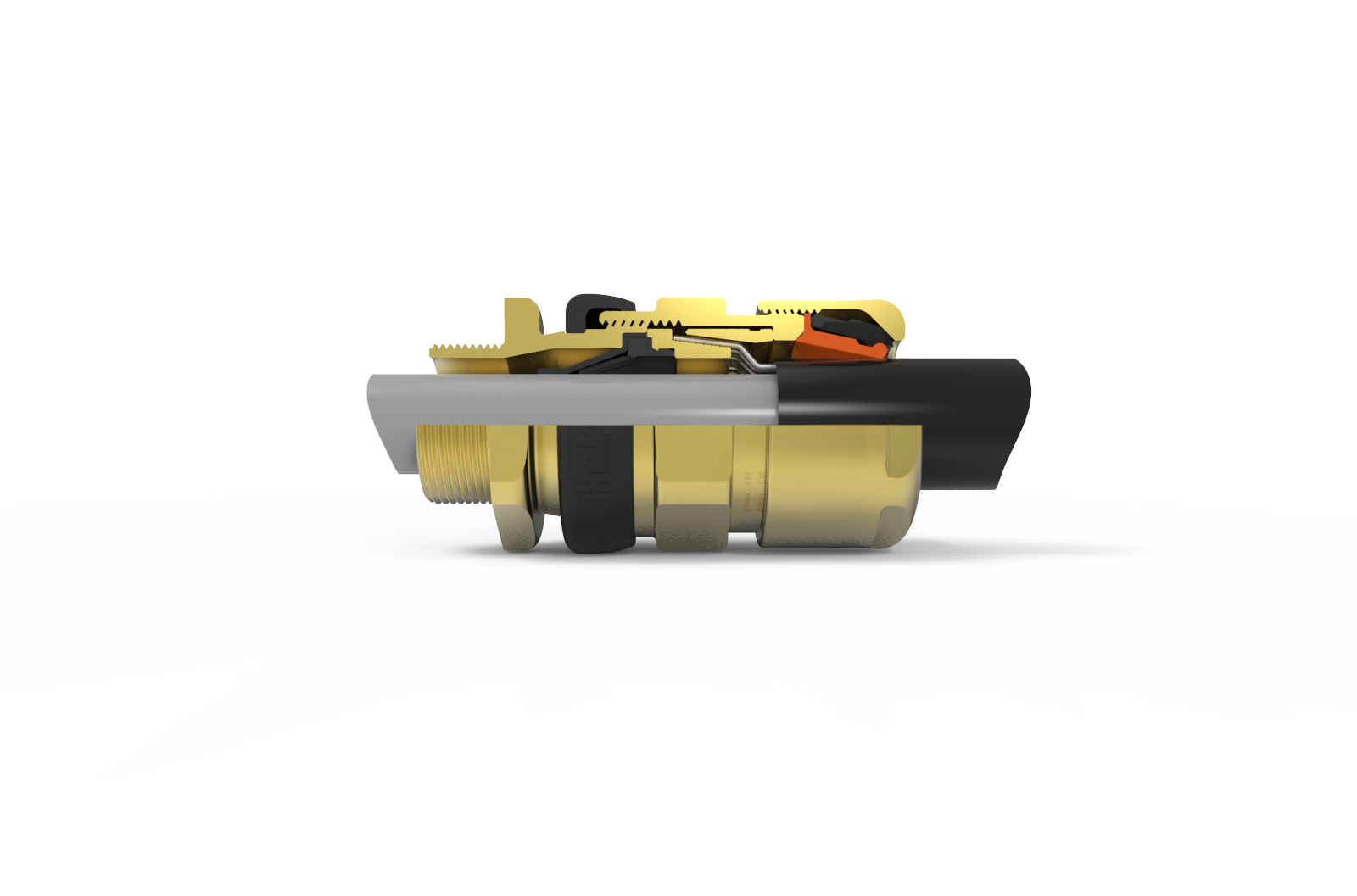

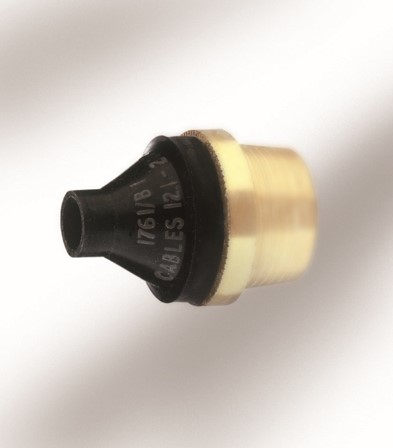

This cable gland is best on the market for use with all type of armoured cable and specifically designed for use with cables that exhibit cold flow. The patented diaphragm seal meets and exceeds the requirements of the installation guide for explosion proof installations (IEC60079-14).
| Application | zone 1, 2 and zone 21 and 22 |
| Type of protection | Exdb IIC Gb / Exeb IIC Gb / Extb IIIC Db / Ex II 2 GD |
| Ingress prot | IP66, IP67, IP68 (30m / 7days), IP69, NEMA4X |
| Material | Brass, brass nickel plated or stainless steel 316 |
| Suitable for cables | All type of armoured cables (braided, steel wire armour SWA, strip and tape) |
| Operating temp | -60°C to +80°C |
| Certified acc to | ATEX / CSA / IECEx / EAC / Inmetro / PESO / CNEX / KC / DNV |
