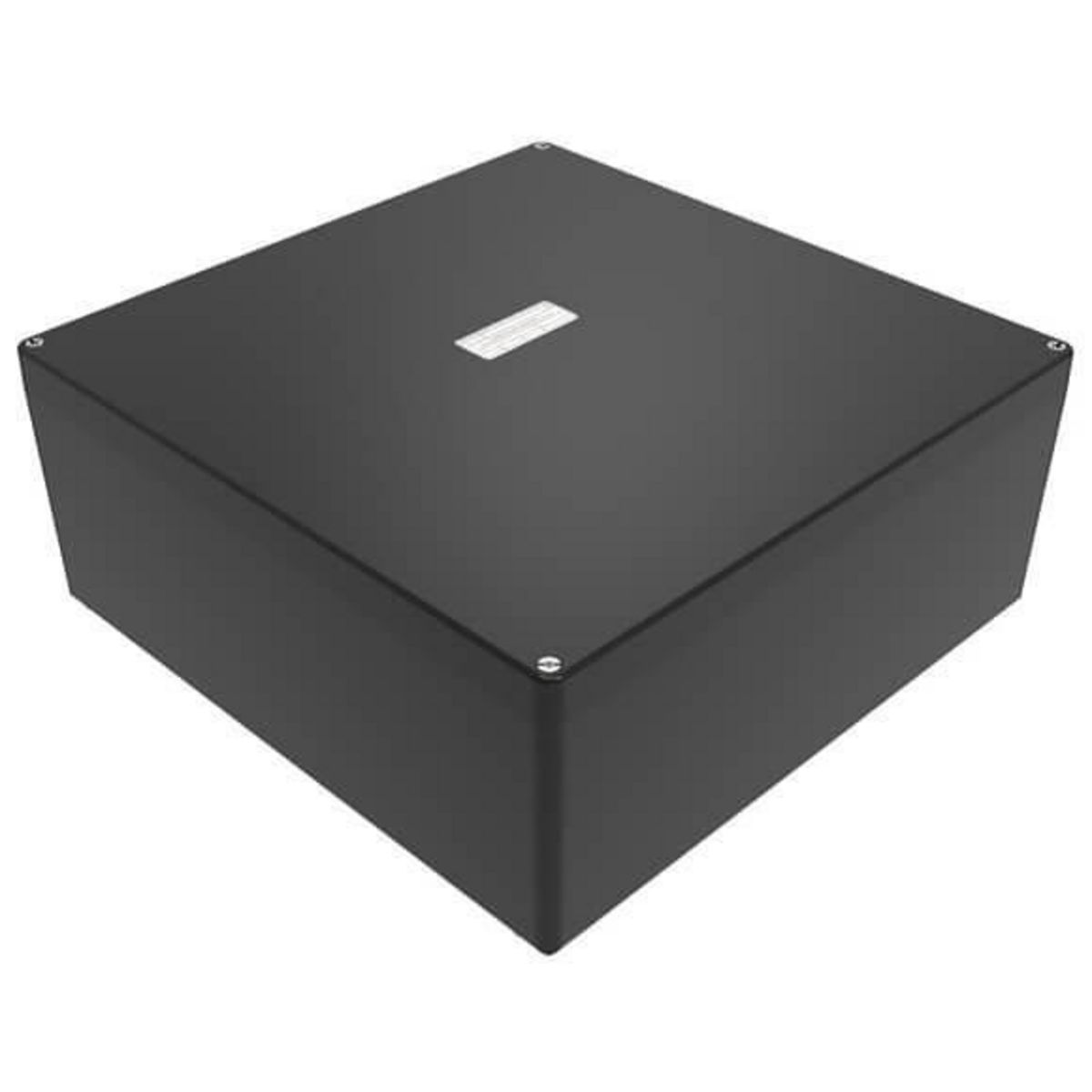

GRP junction boxes in wide range of sizes. Equipped with terminals, entries and cable glands to suit your application.
Choice of exact enclosure size is depending on internal (number and size of terminals and number of terminal rows) and required number, size and position of cable entries.

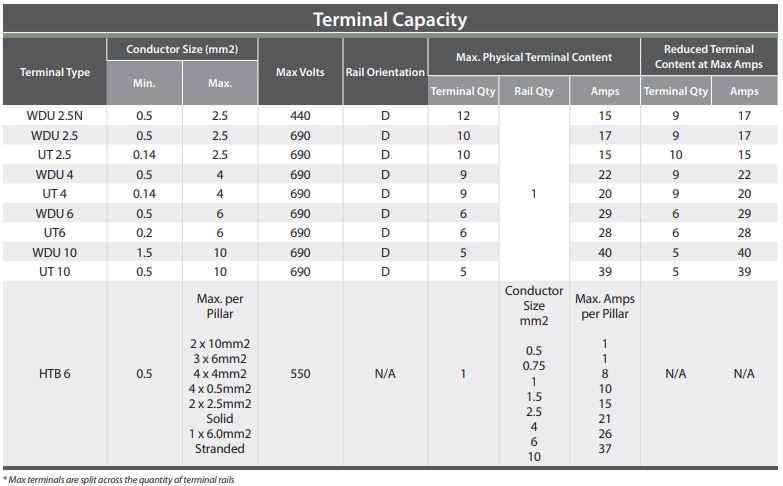

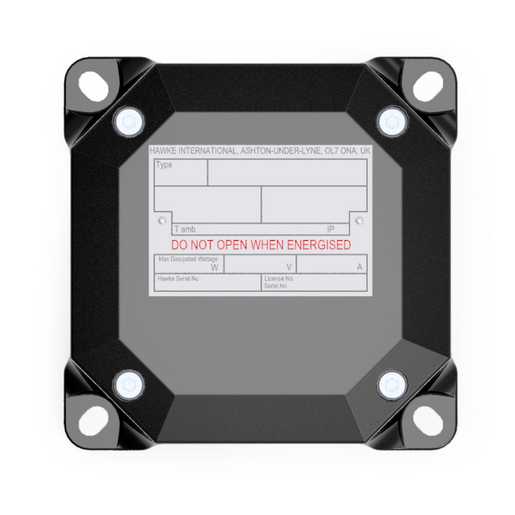

Below selection table is example only (f.i. PL612).
Application | zone 1, 2 and zone 21 and 22 |
Type of protection | Exe IIC Gb / EX II GD |
Ingress prot | IP66, IP67 |
Material: | Polyester |
Operating temp | -60°C to +75°C |
Certified acc to | ATEX / CSA / UL / IECEx / Inmetro / PESO / DNV / ABS / BV |
